HMI Support System (Swing Arm) – Modular Mounting Solution for Industrial Automation
In modern industrial environments, ergonomics, safety, and easy access to HMI panels are essential. Our HMI Support System (Swing Arm System) is a highly modular and durable solution designed to position your HMI panel exactly where operators need it.
Whether used in packaging machines, CNC systems, or automation lines, this system ensures flexible mounting, improved productivity, and enhanced operator comfort.
Looking for best price? Contact us on WhatsApp for instant quote.
What is an HMI Support System?
An HMI Support System, also known as a Swing Arm System, is a mechanical structure used to mount and position HMI panels or control cabinets.
It allows:
✔ Smooth rotation
✔ Adjustable height & angle
✔ Secure locking mechanism
This ensures operators can interact with machines efficiently and safely.
Key Components
A standard HMI swing arm system includes:
• Firstly, Swing Arm (Rotating / Fixed) – allows smooth movement and flexible positioning of the HMI panel
• In addition, Support Column or Suspension System – provides stability and secure mounting
• Finally, Control Panel / HMI Cabinet – houses the interface for operator interaction
👉 As a result, these components together ensure better accessibility, safety, and efficient machine operation.
⚙️ Key Specifications & Build Quality
- Material: Aluminum die-cast (lightweight & strong)
- Finish: Powder-coated (RAL 7016) – corrosion resistant
- Rotation: Up to 300° movement
- Compatibility: Fits Ø 50.8 mm support pipes
🏭 Applications of HMI Swing Arm Systems
Our HMI Swing Arm System can be deployed across a wide range of industries:
• Firstly, Automation Panels – ensures organized and flexible control panel access
• In addition, Packaging & Filling Machines – supports fast and efficient operations
• Moreover, CNC Machines – provides precise and ergonomic interface positioning
• Further, Printing & Inspection Systems – enables easy monitoring and adjustments
• Also, Robotic Cells – improves accessibility in automated environments
• Finally, Food & Pharmaceutical Lines – ensures safe and hygienic operations
👉 As a result, its robust design and ergonomic adjustability make it ideal for applications where frequent HMI access is required.
Benefits of HMI Swing Arm System
Using our HMI support system offers:
✔ Firstly, Flexible positioning – ensures better visibility and easy operation
✔ In addition, Space-saving mounting – supports wall or machine installation
✔ Moreover, Improved operator ergonomics – reduces fatigue during long working hours
✔ Further, High durability – performs reliably in vibration-prone environments
✔ Finally, Professional design – enhances overall machine appearance
👉 As a result, it improves productivity, safety, and overall operational efficiency.
📐 Standard Cabinet Sizes (H x W x D in mm)
We offer versatile cabinet size options to fit any HMI swing arm system:
Height (H): 250, 300, 350, 400, 450, 500 mm
Width (W): 250, 300, 350, 400, 450, 500, 550, 600 mm
Depth (D): 125, 150 mm
Each size supports various electrical layouts and display setups.
🔧 HMI Support System Accessories
Enhance your HMI swing arm system with modular accessories:
| Code | Component Name | Function |
|---|---|---|
| ORU | Open Right Unit | Right-angle vertical rotation joint |
| IRU | Inner Right Unit | Inner angle extension |
| ORE | Open Rotating Elbow | Horizontal swing with rotation |
| WRU | Wall Right Unit | Wall-mounted horizontal support |
| WRE | Wall Rotating Elbow | Rotating wall bracket |
| ELB | Elbow Unit | 90° directional change |
| FXU | Fixed Unit | Fixed position connector |
| ISA | Interface Support Arm | Main swing arm for HMI mounting |

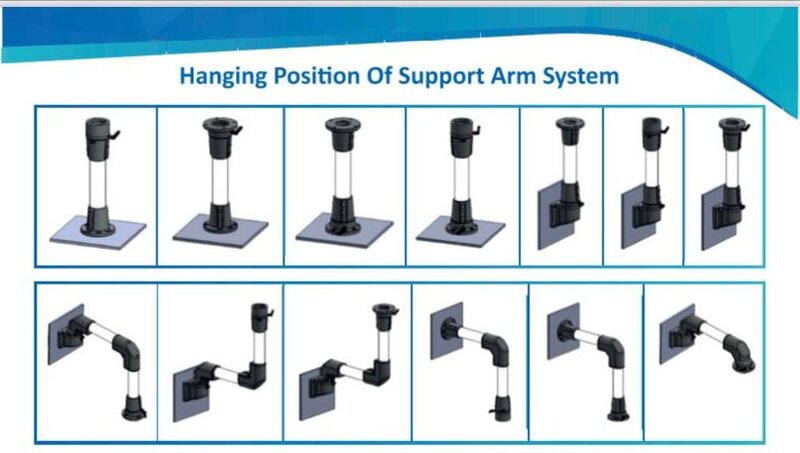

These components allow you to create configurations like wall-mount, pedestal, or top-mount setups—based on your specific machine layout.

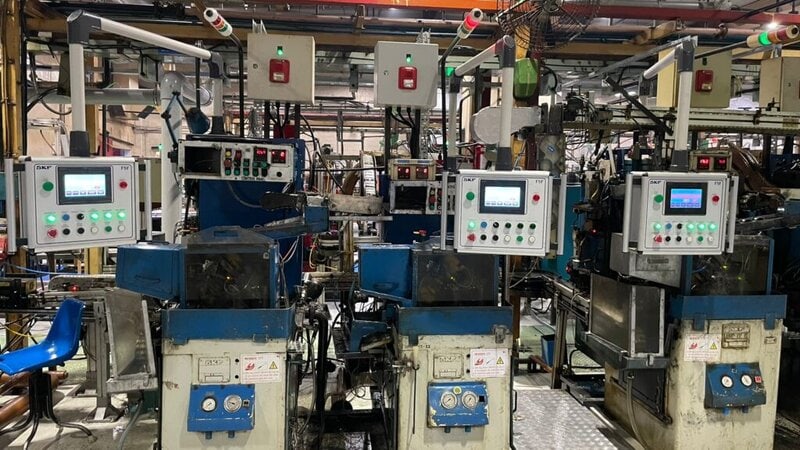

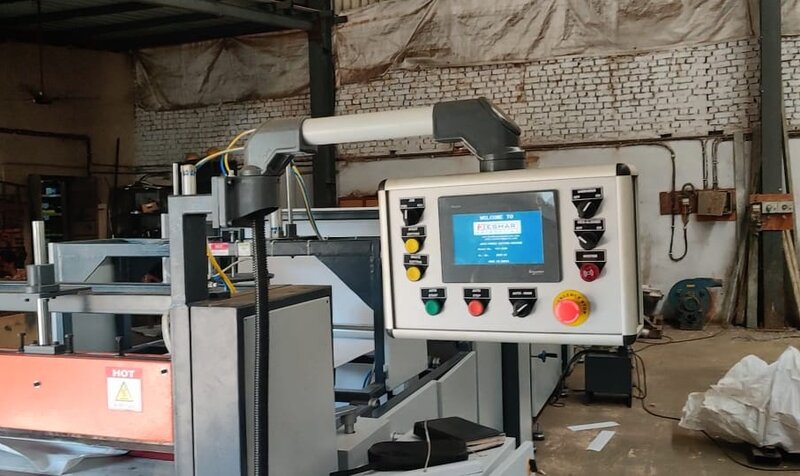

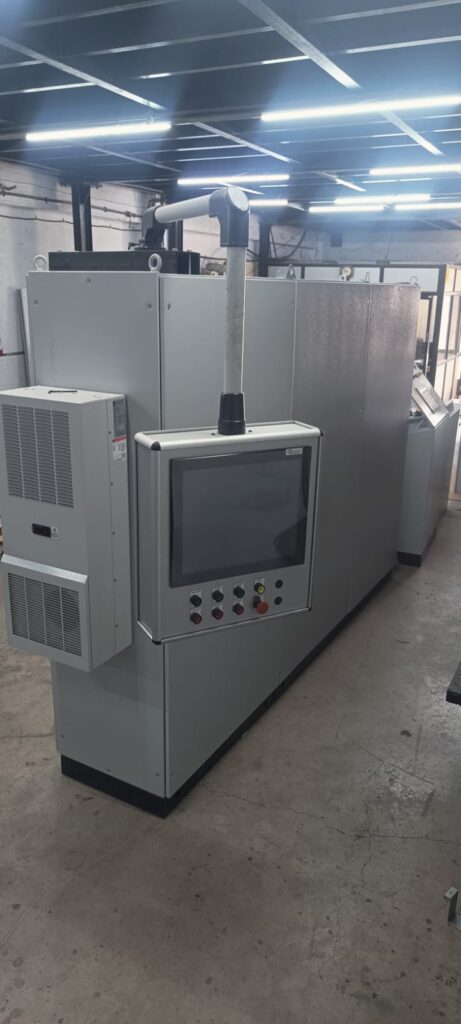

🖼️ Real-World Installations of HMI Cabinet Support Systems
Visual references help you understand how these systems integrate seamlessly with modern industrial machinery.
Why Choose Our HMI Support System?
🔗 Compatibility with Delta & Schneider HMI
The HMI support system is fully compatible with various Delta HMI models, offering a stable and ergonomic mounting solution. It ensures easy access, secure installation, and efficient operation for industrial automation applications.
Our HMI support system is fully compatible with:
Ensures secure mounting and smooth operation
🚀 Get Best Price Today
Looking for a reliable HMI support system supplier in India?
Get instant price on WhatsApp Call Now: +91 9999706958 Email: marketing@unitedcontrolengg.com
For pricing and custom solutions on HMI support systems, contact United Control Engineers India Pvt Ltd — your trusted partner for industrial automation infrastructure.
Let’s build the future of manufacturing with Make in India innovation!
HMI Support System Price in India – What You Should Know
When evaluating the HMI support system price in India, it is important to look beyond just cost. Instead, factors like build quality, modular design, and long-term durability play a crucial role in overall value. For example, systems made with high-grade materials and flexible configurations tend to offer better performance over time.
Moreover, choosing the right supplier ensures not only competitive pricing but also reliable support and product availability. This becomes especially important for industries where downtime and maintenance need to be minimized.
Choosing the Right HMI Swing Arm System Supplier in India
If you are looking for a trusted HMI swing arm system supplier in India, it is essential to select a partner who understands industrial requirements. In addition, a good supplier should offer ready stock, customization options, and technical guidance.
At United Control Engineers, we focus on delivering solutions that match your exact application needs. Therefore, you get a balance of quality, flexibility, and cost-effectiveness without compromising performance.
FAQs – HMI Support System
An HMI support system is used to mount HMI panels. Therefore, it improves accessibility and operator efficiency.
Yes, it supports both Delta and Schneider HMI. As a result, integration becomes easy and reliable.
Yes, it offers flexible rotation and height adjustment. In addition, it ensures better viewing angles.
HMI support systems are widely used in automation, packaging, CNC, pharmaceutical, and manufacturing industries. Hence, they are ideal for any setup requiring frequent operator interaction.
Yes, it is built with aluminum die-cast material and powder coating. As a result, it can withstand corrosion, vibration, and tough industrial conditions.
Yes, the system supports multiple mounting options, including wall, pedestal, and machine mounting. Therefore, it can be customized as per your layout.
We offer a wide range of sizes. For example, height ranges from 250 mm to 500 mm, and width goes up to 600 mm, depending on your requirement.
Yes, the design allows proper cable routing inside the arm. This not only improves safety but also gives a clean and professional look.
No, installation is quick and simple. Moreover, it requires minimal tools, which saves both time and effort.
You can easily contact us via WhatsApp or call. After that, we will share the best price and suitable configuration based on your requirement.
