Schneider VFD
Schneider VFD (Variable Frequency Drive) is a high-performance motor control solution designed for energy efficiency and precision. It helps regulate motor speed, reduce energy consumption, and extend equipment life. Schneider VFDs are widely used in industries like manufacturing, HVAC, water treatment, and more. With advanced features, reliable operation, and smart automation capabilities, Schneider VFDs ensure optimal performance and cost savings.
VFD Series
Applications:
The ATV310 is widely used in various industrial applications, including:
Packaging Machines
Textile Machines
Machine Tools
Woodworking Machines
Material Handling Equipment
Ceramic Machines
Schneider ATV 310

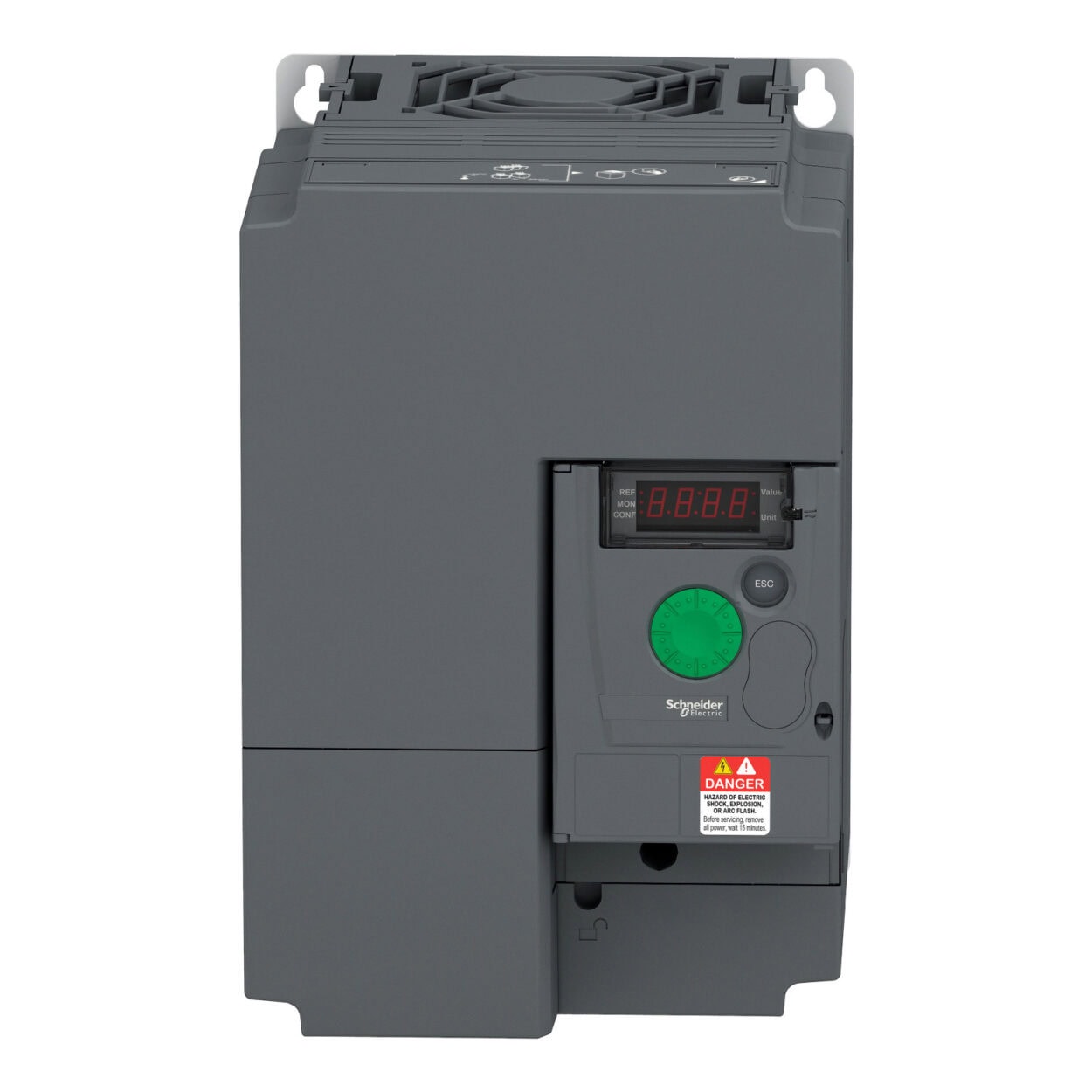

The Schneider Altivar 310 (ATV310) is a variable frequency drive (VFD) designed for controlling three-phase asynchronous motors. It operates primarily in the 380V to 460V AC voltage range and is available in power ratings from 0.37 kW (0.5 HP) to 22 kW (30 HP).
Features:
Compact Design: ATV310 has a space-saving design, making it easy to install in various machines.
Robust Build: Designed for harsh industrial environments with reliable performance.
High Starting Torque: Provides 150% torque at 3 Hz, making it suitable for heavy loads.
Braking Capability: Offers 80% braking torque without a braking resistor and 150% with a braking resistor.
Modbus Communication: Supports Modbus protocol for seamless system integration.
Single-Phase & Three-Phase Availability:
Single-phase: ❌ Not available
Three-phase: ✅ Available (380V to 460V AC)
Applications:
The ATV320 is suitable for a wide range of industrial applications, including:
Material Handling: Conveyors, lifts, hoists
Packaging Machines: Bagging, labeling
Textile Machines: Rapier looms, knitting machines
Pumps and Fans: HVAC systems, compressors
Woodworking & Metal Processing Machines
Schneider ATV 320

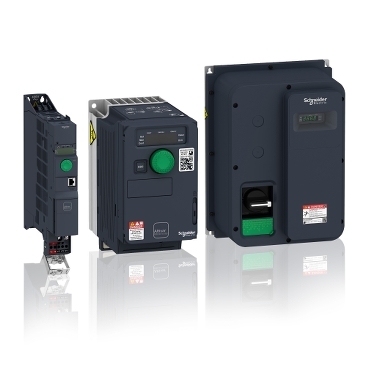

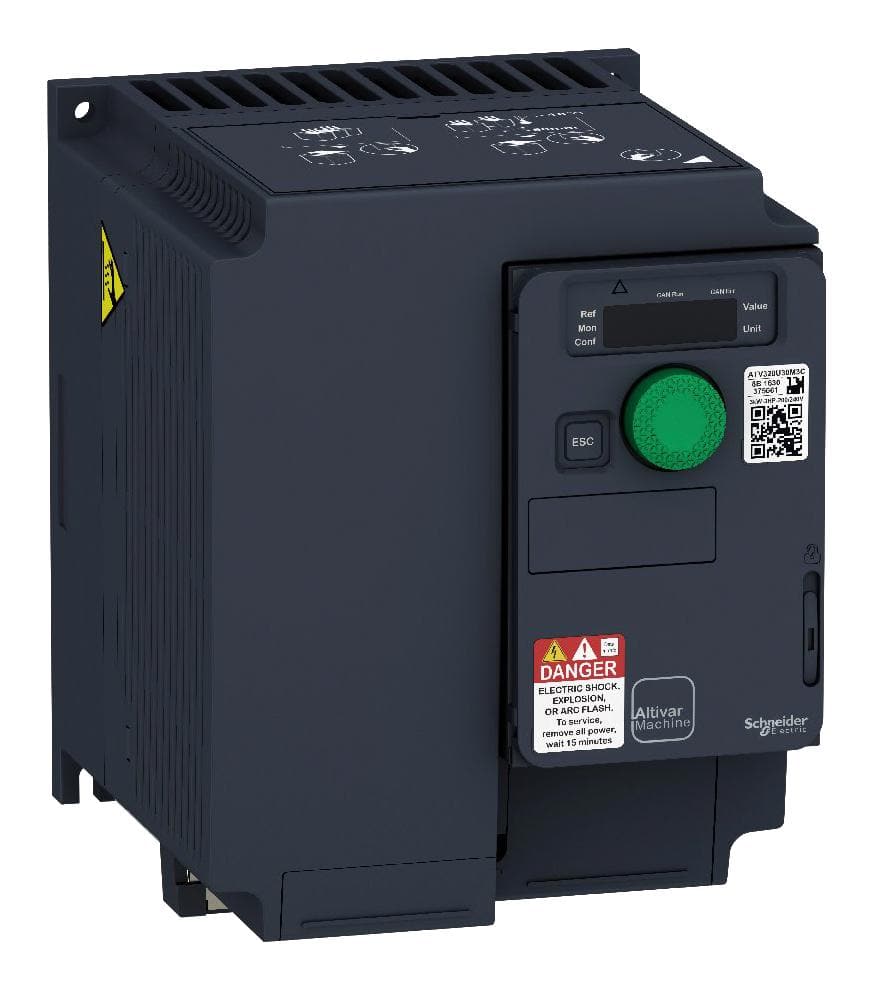

The Schneider Altivar 320 (ATV320) is a variable speed drive (VSD) designed for controlling both synchronous and asynchronous three-phase motors. It offers enhanced performance, reliability, and flexibility for industrial applications.
Key Features:
Power Range: 0.18 kW (0.25 HP) to 15 kW (20 HP)
Voltage Range: 200V to 690V
Input Supply:
Single-phase: Not Available
Three-phase: 200-240V, 380-500V, 525-600V (Available from 0.18 kW to 15 kW)
Rugged Design: Coated PCBs (IEC 60721-3-3 class 3C3) for harsh environments
High Temperature Resistance: Operates up to 60°C without additional cooling
Built-in Communication Protocols: Modbus and CANopen, with options for Ethernet/IP, Profinet, EtherCAT, POWERLINK, and Profibus DP
Single-Phase & Three-Phase Options:
Single-phase Input: ❌ Not Available
Three-phase Input: ✅ Available (200-690V, 0.18 kW to 15 kW)
Applications: The ATV340 is suitable for a wide range of industrial applications, including:
Packaging Machines
Material Handling Equipment
Material Working Machines
Hoisting Applications
ATV 340
The Schneider Electric Altivar 340 (ATV340) is a high-performance variable speed drive (VSD) designed for controlling three-phase synchronous and asynchronous motors, catering to demanding industrial applications.
Key Features:
Power Range: 0.75 kW to 75 kW (1 HP to 100 HP)
Voltage Range: Typically operates at 380V to 480V AC.
High Overload Capacity: Delivers up to 220% nominal torque for 2 seconds, ensuring robust performance during high-demand periods.
Advanced Motor Control: Supports both open and closed-loop control for synchronous and asynchronous motors.
Integrated Safety Functions: Includes features like Safe Stop 1 (SS1), Safe Limited Speed (SLS), and Safe Maximum Speed (SMS) for enhanced operational safety.
Communication Protocols: Comes with embedded Modbus and CANopen protocols, with options for Ethernet/IP, Profinet, EtherCAT, POWERLINK, Profibus DP, and others, facilitating seamless integration into various industrial networks.
Environmental Resilience: Designed to withstand harsh conditions, including resistance to vibration, shock, and non-conductive dust, and operates efficiently in temperatures up to 60°C without additional cooling.
Single-Phase and Three-Phase Options: The Altivar 340 series is primarily designed for three-phase input configurations and does not offer single-phase input options.
In summary, the Schneider Electric Altivar 340 is a versatile and robust VSD, engineered to meet the high-performance demands of modern industrial machinery, ensuring energy efficiency and precise motor control across various applications.
Applications:
The ATV610 is ideal for energy-efficient motor control in:
Water & Wastewater Management
Oil & Gas Industry
Building Management
Power Plants
ATV 610
The Schneider Electric Easy Altivar 610 (ATV610) is a variable speed drive (VSD) designed specifically for pumps and fans in industrial applications.
Key Features:
Power Range: 0.75 kW to 160 kW (1 HP to 215 HP)
Voltage Range: 380V to 460V AC
Input Supply: Three-phase only
Overload Capacity:
Normal Duty (ND): Up to 110% overload capacity
Heavy Duty (HD): Up to 150% overload capacity
Protection: IP20-rated enclosure for safe operation in industrial environments
Built-in Communication: Supports Modbus serial link and optional Profibus DP V1
Single-Phase & Three-Phase Options:
Single-phase: ❌ Not available
Three-phase: ✅ Available (380V to 460V AC)
Applications: The ATV930 is suitable for a wide range of industrial applications, including:
Artificial Lift Systems
Hoisting Equipment
Pumping Systems
Fans and Ventilation
ATV 930

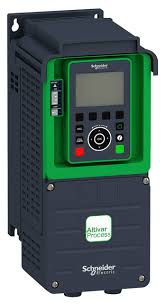

The Schneider Electric Altivar Process 930 (ATV930) is a high-performance variable frequency drive (VFD) designed for demanding industrial applications requiring advanced motor control.
Key Features:
Power Range: 1 HP to 500 HP. Voltage Range: Typically operates between 380V to 480V AC.
Motor Compatibility: Supports both synchronous and asynchronous three-phase motors.
Integrated Functionalities: Features embedded power measurement, energy dashboard, process monitoring, and control capabilities.
Safety and Protection: Includes built-in braking units and conforms to IP21 protection standards for safe operation.
Single-Phase and Three-Phase Options: The Altivar Process 930 series is primarily designed for three-phase input configurations and does not offer single-phase input options.
